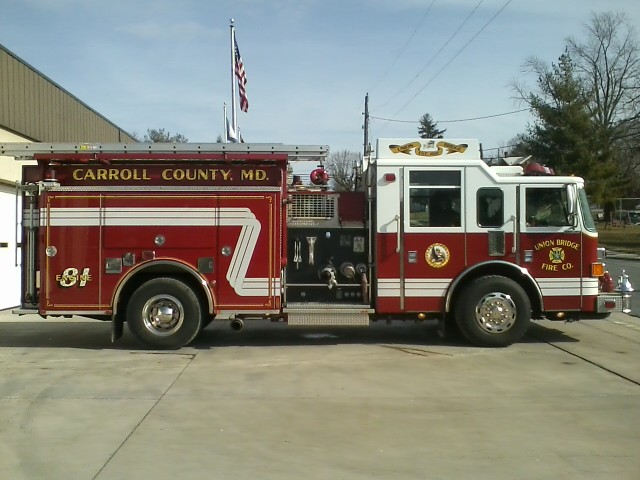

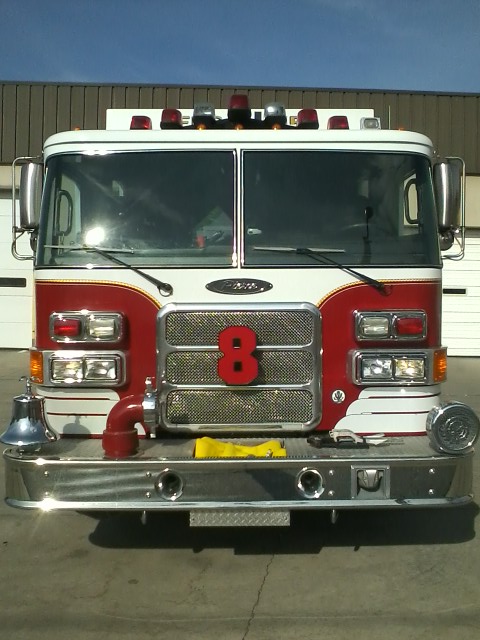

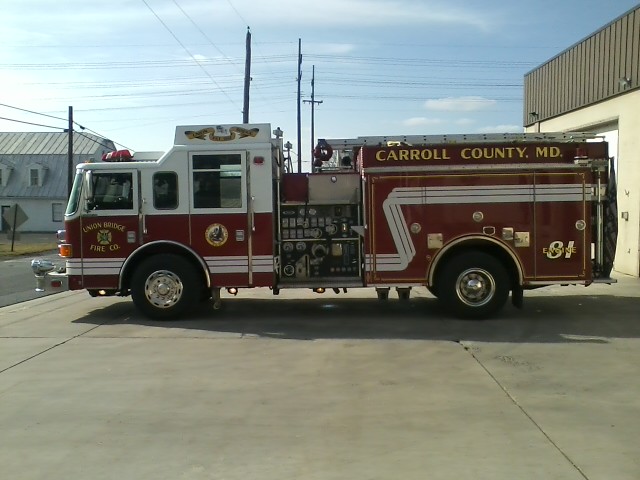

ENGINE 81
APPARATUS FEATURES
Manufacture Date: 3/14/2003
Purchase Cost: $324,224
Motor: 400 HP Cummins ISL
Transmission: Allison EVS3000P automatic
Suspension: (Front) TAK4 Independent Suspension, (Rear) Leaf Spring
Tires: (Front) Michelin XZY3 385/65R22.5 Radial, (Rear) Michelin XDN 12R22.5 Radial
Fuel Capacity: 65 gallon diesel
Pump: 1500 GPM CSU single-stage 'Waterous' w/ 'Hale' oil-less primer
Tank: 1000 Gallon 'UPF' Poly-Tank
Generator: 'Harrison' 15KW hydraulic drive
Special Features: 'Pierce' hydraulic ladder rack system w/manual lock (Passenger Side electric control),
rear 6" Intake/Discharge (4" plumbing), Wil-Burt Light Tower w/(4) 1000W lightheads,
(2) cab mounted 1000W quartz lights, (2) portable tripod 1000W quartz lights
Ladders: (1) 24' Extension, (1) 14' Roof, (1) 10' Folding Attic
Emergency Lighting: 'Federal Signal'
TAKE A LOOK INSIDE

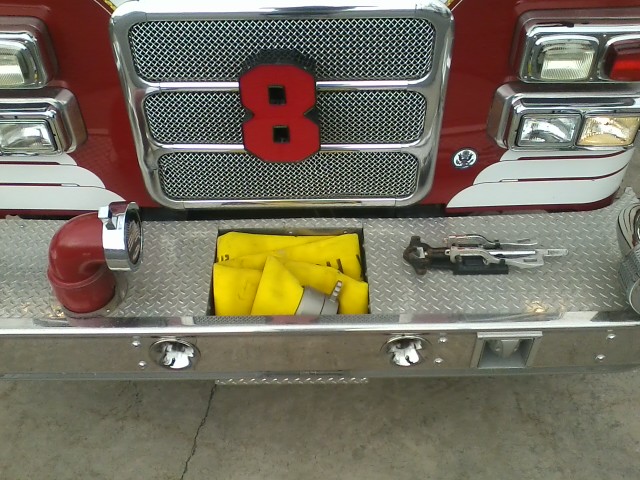

Front Bumper (F1)
(1) 5” x 25’ hydrant supply line, (2) spanner wrenches, (1) hydrant wrench, (1) dead blow mallet
Driver Side Front
(1) Traffic Safety Vest, (1) portable radio, (1) 'Survivor' flashlight, (3) rags/towels

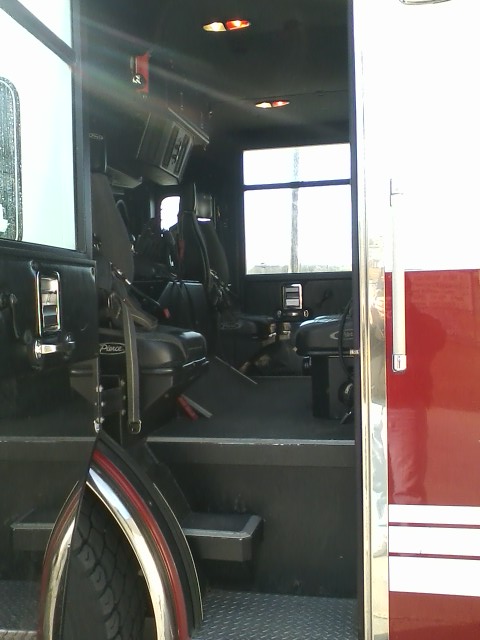

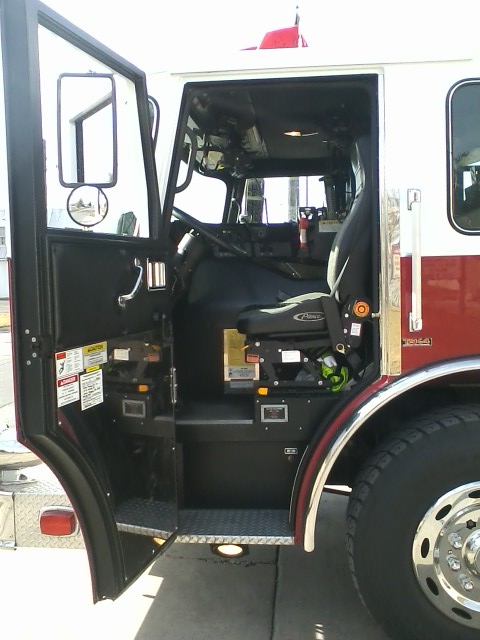

Drivers Side Crew Cab
(2) Traffic Safety Vests, (4) 'Scott NXG' SCBA, (2) spare 'Scott' face pieces,
(1) 'Bullard' thermal imaging camera, (3) portable radios, portable radio charger,
(2) 'Survivor' flashlights, (1) 'Denver' tool, (1) 'NY' roof hook w/pry end
(1) set of elevator keys, (1) 'Hotstick' voltage sensor

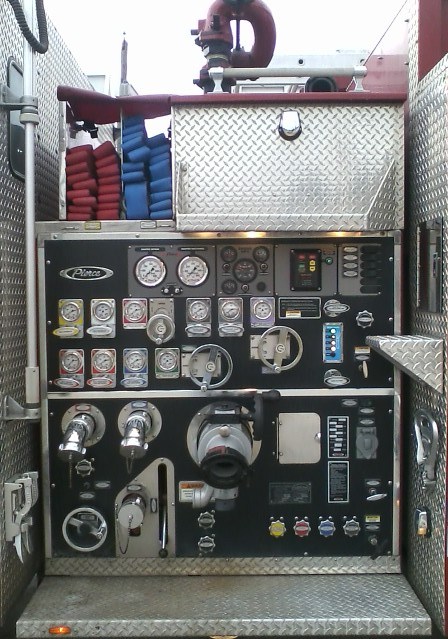

Drivers Side Pump Panel
(1) 200’ x 1 ¾” precon Attack Line w/'Akron' Assault nozzle, (2) spanner wrenches,
(1) 4” 'TFT' Jumbo Ball Intake Valve, (1) 2 ½” intake, (2) 2 ½” discharges

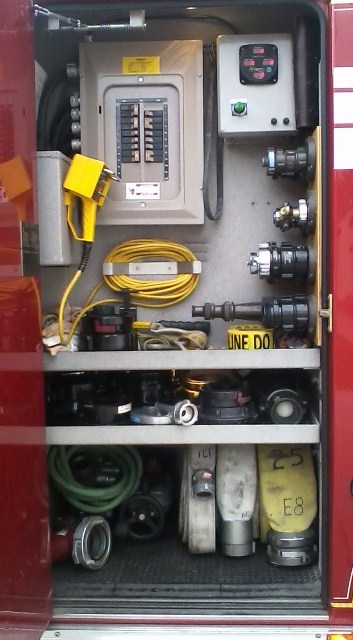

Drivers Side Front Compartment (D1)
'Harrison' generator monitor, 110V circuit breaker box, 'Wil-Burt' light tower controller,
(2) 2 ½” cap, (2) 2 ½” double female, (2) 2 ½” double male, (2) 2 ½” x 1 ½” reducers,
(1) 1 ½” cap, (2) 1 ½” double female, (2) 1 ½” double male, (2) 1 ½” x ¾” reducer,
(1) 1 ½” cellar nozzle, (1) 2 1/2" cellar nozzle, (1) Set of stack tips w/stream straightener,
assorted spare hose gaskets, (2) rope hose tools, (2) storz wrenches, (1) Mallet,
(1) leather hose jacket, (1) roll of “Caution” tape, ear plugs, “Tanker Ops Guide”,
(1) "Friction Loss Chart", (1) "Engine Pressure Chart", (1) 6" cap, (1) 6" double female,
(1) 6” female x 5” male, (1) 6” female x 5” female, (1) 6" male x 5" female,
(1) 5” male x 4” storz, (1) 4 ½” female x 2 ½” female, (1) 4 ½” female x 4” storz,
(2) 2 ½” female x 4” storz, (2) 5” storz x 4” storz, (1) 4” storz x [2] 2 ½” siamese,
(1) 2 ½” x [2] 1 ½” gated wye, (2) 4” storz x 2 ½” gated wyes,
(1) 4 ½” female x 4” storz hydrant gate valve, (1) jet siphon, (1) 2 ½” 'Akron' fog nozzle,
(1) 15' garden hose, (1) 1 ¾” x 50’ hose, (1) 3” x 25’ hose, (1) 4” x 25’ hose

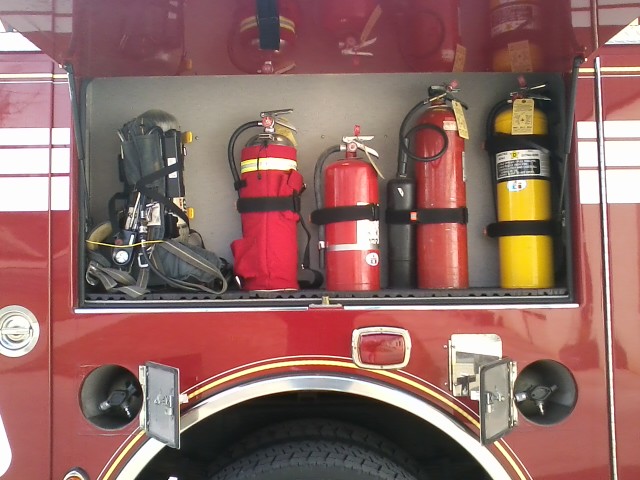

Drivers Side Mid Compartment (D2)
(1) 'Scott NXG' SCBA (drivers), (1) "Class A" pressurized water extinguisher (PWC),
(1) "Class ABC" fire extinguisher, (1) "Class BC" fire extinguisher, (1) "Class D" fire extinguisher
(Wheel Well Storage: (2) spare 'Scott' SCBA air bottles)

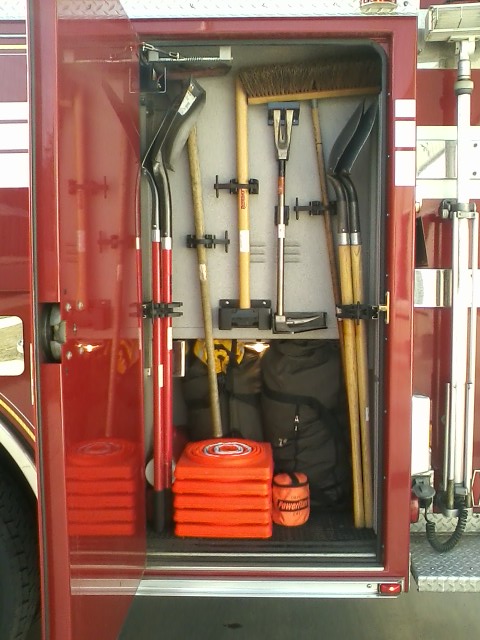

Driver Side Rear Compartment (D3)
(2) flathead shovels, (2) digging shovels, (1) brush rake, (1) 18” broom, (1) 8 lb sledge hammer,
(1) halligan bar, (1) flare kit, (1) D.O.T. triangle road kit, (5) 28” collapsible traffic cones,
LZ marker kit (4 lights), (2) water rescue bags {(6) helmets, (6) PFD‘s, (1) 75’ rope throw bag}
Passenger Side Front
(1) Traffic Safety Vest, (1) 'Scott NXG' SCBA, (1) portable radio, (1) 'Survivor' flashlight,
(1) 'M40' multi-gas meter, (1) binoculars, various ‘Box Area’ maps/'ADC' maps,
various miscellaneous forms, NAERG/Other Haz-Mat books,
"Crew Personal Accountability Tag' ring collector

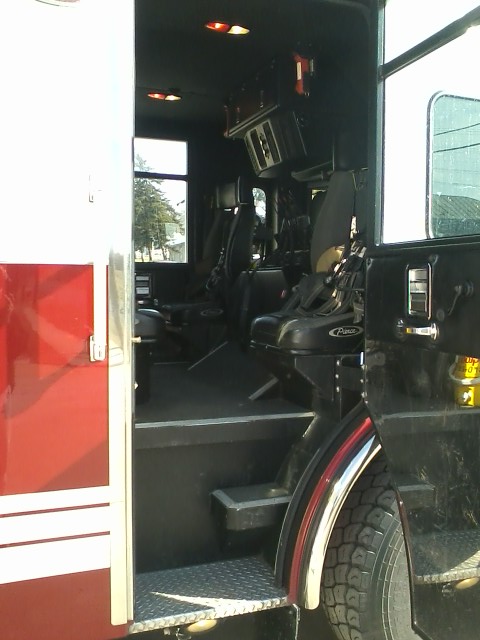

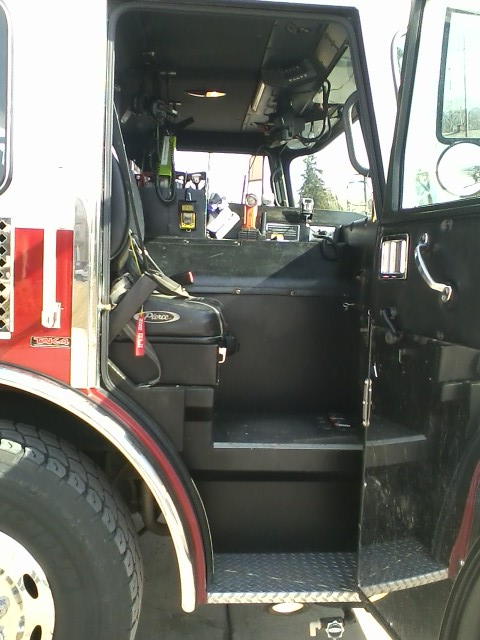

Passenger Side Crew Cab
(2) Traffic Safety Vests, (1) ‘Irons’ set (flathead axe/halligan bar), (1) 3’ ceiling/drywall hook,
(1) water cooler, (2) 'Survivor' flashlights, First Aid bag, disposable medical gloves

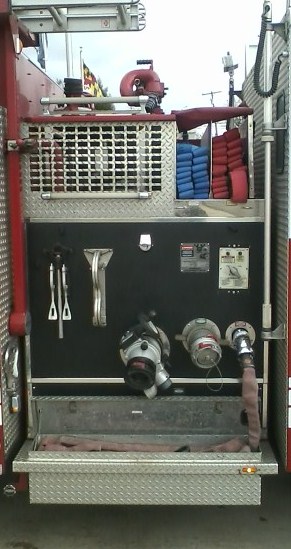

Passenger Side Pump Panel
(1) 200’ x 1 ¾” precon Attack Line w/'Akron' Assault nozzle,
(1) 4” 'TFT' Jumbo Ball Intake Valve, (1) 4” LDH discharge, (1) 2 ½” discharge,
(1) 100’ x 1 ¾” precon Trash Line w/Akron Assault nozzle, (2) spanner wrenches,
(1) hydrant wrench, (2) storz wrenches

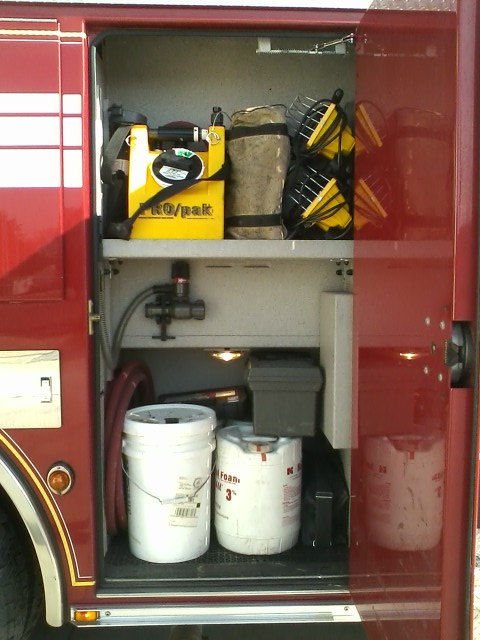

Passenger Side Front Compartment (P1)
Foam 'Pro-Pak' w/10’ hose and adapters, (1) foam eductor, (1) nozzle adapter foam applicator,
(2) ‘AFFF 3%’ foam cans, (1) ‘Class A’ foam cans, (1) electric cord pigtail kit,
(2) 500W portable work lights, (1) toolbox, (1) socket wrench kit,
(1) 'Hydra-Ram' w/K-Tool and mallet (forcible entry tool), (1) 5 gallon clay absorbent bucket

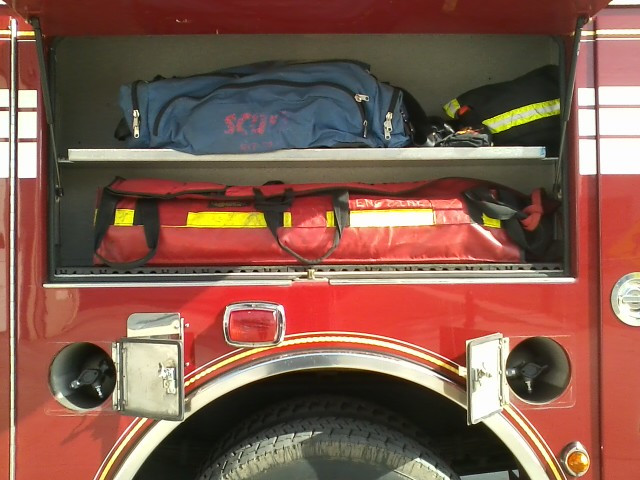

Passenger Side Mid Compartment (P2)
(1) R.I.T. SCBA bag, (1) R.I.T. Rescue & Escape Kit {3-leader line bags},
(1) high-rise pack - includes the following equipment/tools:
(150’ x 1 ¾” w/ 'SaberJet' nozzle, 2 ½” x 1 ½” gated wye, spanner wrench, adjustable wrench),
(1) 'Big Easy' forcible entry tool
(Wheel Well Storage: (2) spare 'Scott' SCBA air bottles)

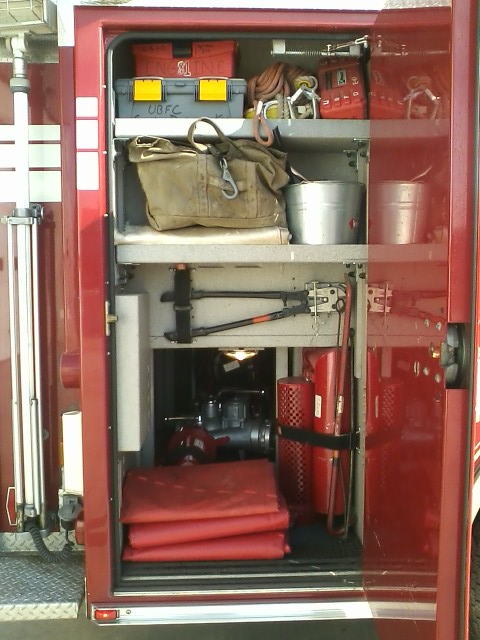

Passenger Side Rear Compartment (P3)
(1) lock out/tag out kit, (1) smoke detector kit, (1) sprinkler kit, 100’ utility rope, (2) ladder belts,
(1) ’Interior’ chimney kit {3 gallon metal bucket, shovel and mirror},
(1) ’Exterior’ chimney kit {50’ chimney chain, chimney bombs [dry chemical], welders gloves},
(1) asbestos blanket/runner, (1) 24” bolt cutter, (1) 28” Crowbar, (2) chimney pipe cleaners,
(1) 6” floating strainer, (1) 6” low-lift strainer, (2) salvage covers

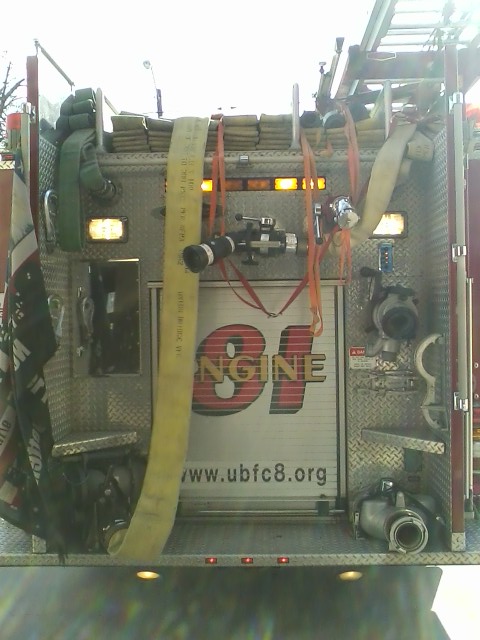

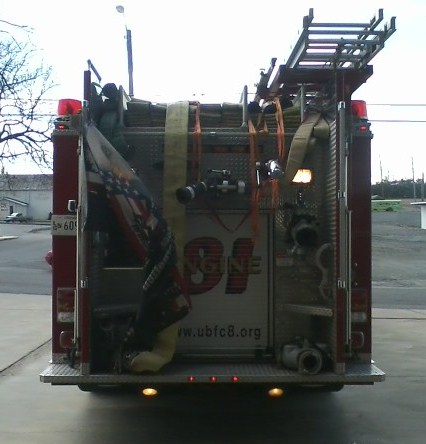

Rear Hosebed/Tailboard
(1) 200’ x 2” precon Heavy Attack Line w/'Akron' Assault nozzle, 1200’ x 4” LDH supply line,
(3) 200’x3” deadload supply line, (1) Humat valve w/hydrant wrench and 2 ½” hydrant valve,
(1) 250’x2 ½” precon Blitz Line w/400 gpm 'Mercury' fog nozzle/monitor,
(1) 4” TFT Jumbo Ball Intake Valve, (2) spanner wrenches, (2) storz wrenches

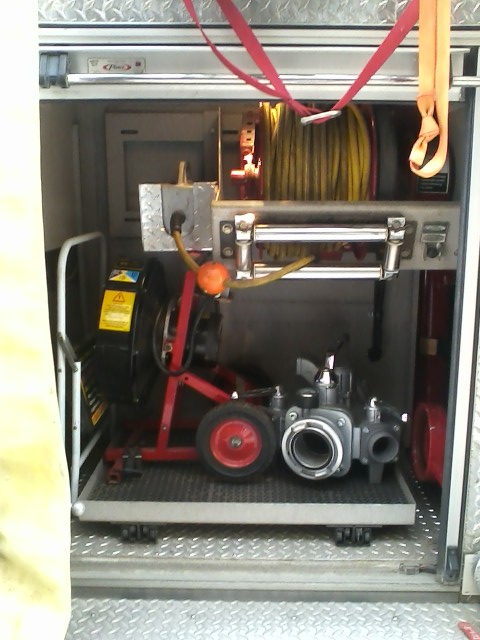

Rear Compartment (R1)
200’ x 10 AWG 110V 'Hannay' electric cord reel w/junction box, (1) 115V 'RAM' PPV fan,
(1) step stool, (1) 3-Way manifold {4”- 4” x [2] 2 ½” gated valve)

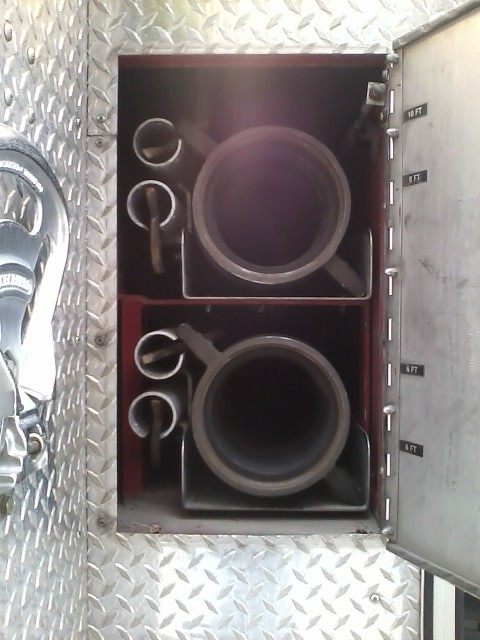

Rear Compartment (R2)
(2) 6” x 10’ hard suction tubes, (1) 10’ pike pole, (1) 8’ Pike pole, (2) 6’ pike pole

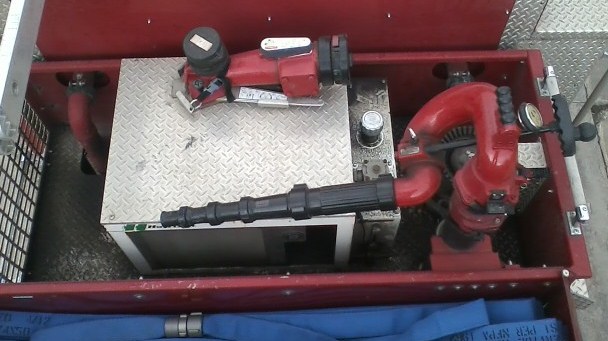

Top Dunage (TD1)
(1) 'TFT' deluge gun/monitor, (1) 'TFT' fog nozzle,
(1) 'TFT' portable base for deluge gun/monitor,
'Harrison' hydraulic PTO generator and hydraulic fluid reservoir
|
