BRUSH 85
APPARATUS FEATURES
Manufacture Date: 1967
Purchase Cost: $1 (Government Lease Purchase through the Maryland Forestry Service)
Motor: Jeep 230 CI overhead cam "Tornado-OHC" straight 6
Transmission: T-98a 6.32:1 "granny" low gear (Mil-spec 4-speed manual)
4x4: Direct linkage, low range and high range shifters
Suspension: Spring Type
Tires: Power King Traction Plus
Pump: Honda 18 HP/350 GPM Darley w/vacuum style primer
Tank: 250 Gallon UPF Poly-Tank
Intakes/Discharges:
2 ½” intake, 2 ½” manifold (1 - 2 ½” discharge, 1 - 1 ½” discharge, 1 - 1” discharge, 1 - pump-to-tank recirculator)
TAKE A LOOK INSIDE

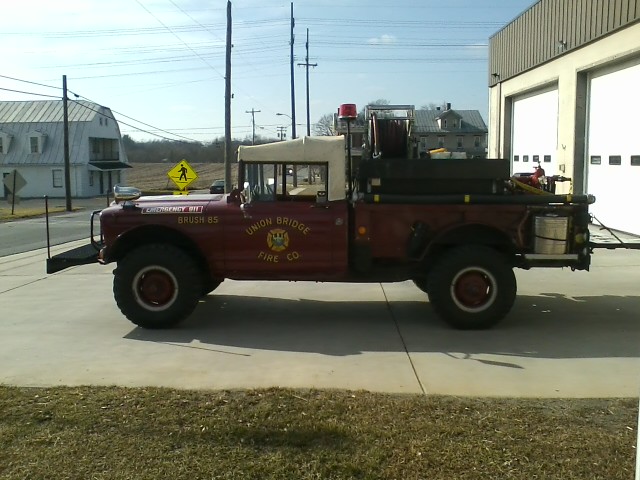

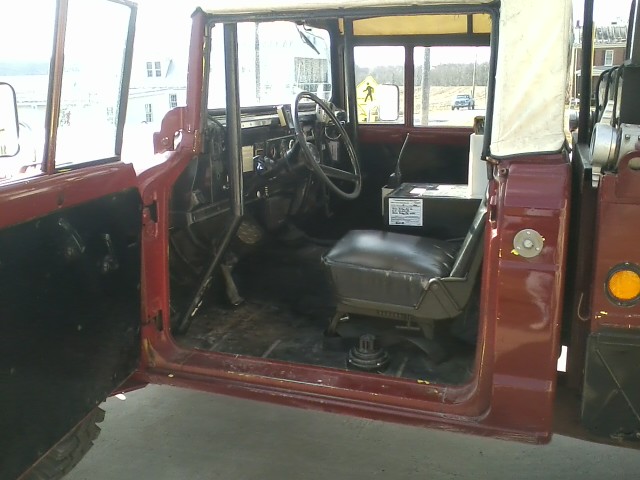

Drivers Side Front
(1) Traffic Safety Vest, (2) rags/towels, (4) 28" collapsible traffic cones,
(1) 'Survivor' flashlight, (2) clevis' for towing
NOTE: At the bottom rear edge of both driver and passenger side doors, a small 'black' compartment can be seen on the body of the truckbed. This small 'cross-over' compartment, contains 'towing chains'; long and short w/ hooks.

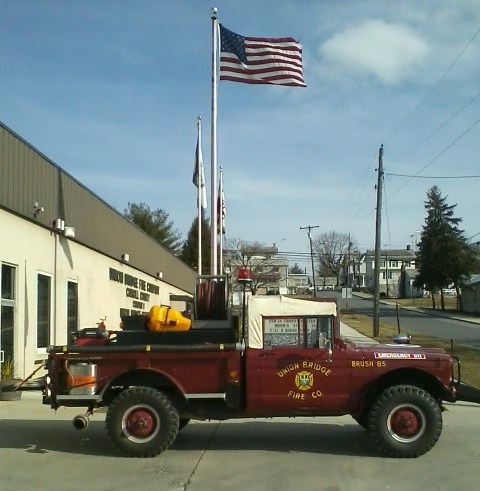

Passenger Side Front
(1) Traffic Safety Vest, (1) portable radio, (1) NAERG (Haz-Mat book), (1) First Aid kit,
various "Box Area/ADC maps, (3) 'Velcro' straps, (1) D.O.T. triangle kit
(1) "Class ABC" fire extinguisher, "Crew Personal Accountability Tag" ring collector

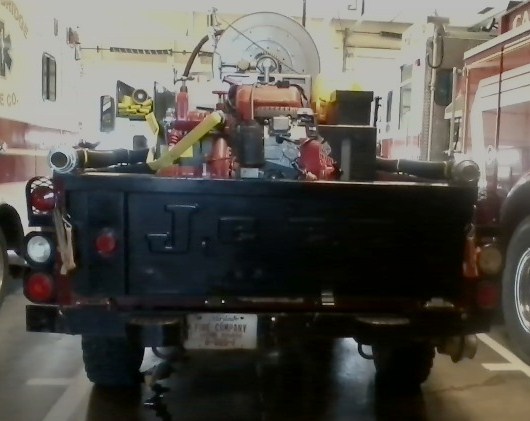

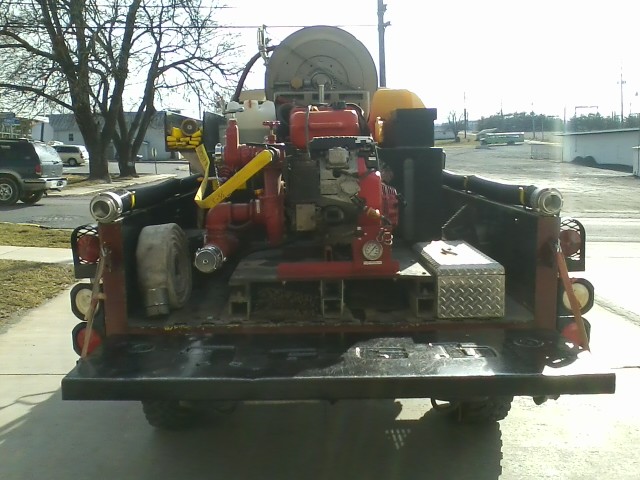

Rear Slide-In Unit
100' x ¾“ 'Hannay' Booster reel w/nozzle, 100' x 1" Forestry Line w/nozzle, (1) 25' x 3" hose,
(1) 'Class A' foam can (5 gallons), (1) 'Stihl' chain saw w/repair kit and spare chain,
(1) 2 1/4" gallon gas/oil mix can, (2) 3' digging shovels, (2) 3' flathead shovels,
(3) brush brooms, (3) brush rakes, (1) pickhead axe, (2) 10' x 2 ½”, hard suction tubes,
(1) 2 ½” floating strainer, (1) 2 ½” basket strainer
(4) soft 5 gallon bladder tanks w/hand pumps, (2) 5 gallon "Indian" tanks w/hand pumps

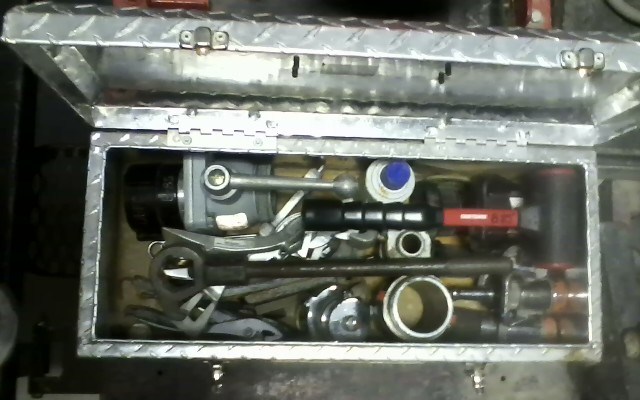

(Diamond plate toolbox is a compartment for hose adapters and tools)

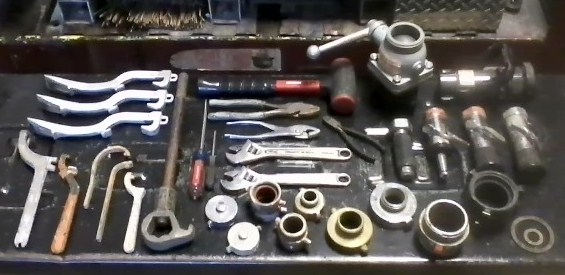

Toolbox Contents
(1) 2 ½” hydrant valve, (1) 2 ½” double female, (1) 2 ½” double male,
(2) 2 ½” x 1 ½” reducer, (1) 1 ½” double female, (1) 1 ½” double male, (2) 1 ½” cap,
2 ½” and 1 ½” hose gaskets, (2) adjustable wrenches, (1) pliers, (1) linemans pliers,
(1) wire cutter, (1) mallet, (1) flat screwdriver, (1) phillips screwdriver, (1) can of ether,
(3) spanners, (4) booster spanners, (1) hydrant wrench, (1) 1 ½” 'Akron' fog nozzle,
(2) 3/4" 'Akron' fog nozzles, (1) 3/4" 'Akron' straight stream nozzle,
(1) 3/4" straight stream twist nozzle
|
